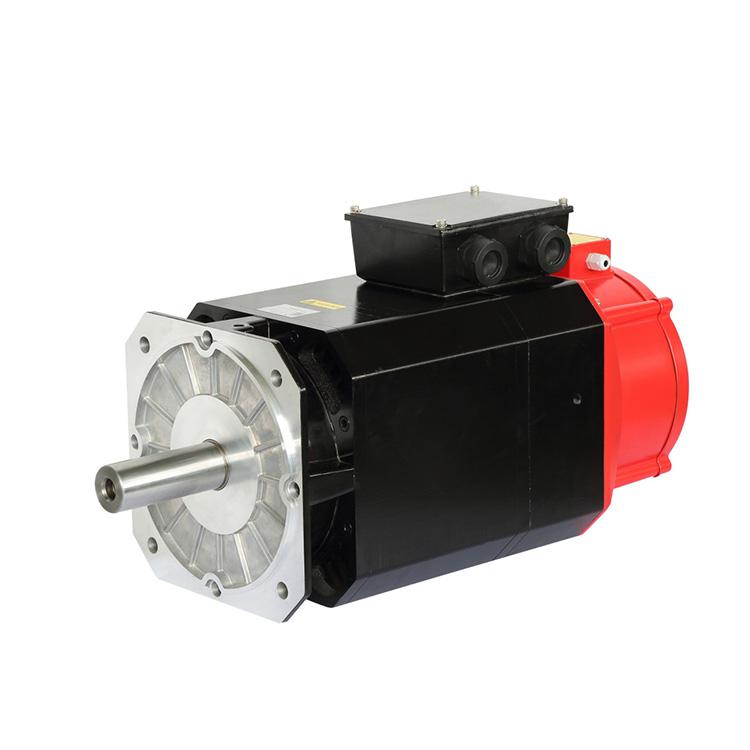

265 Series Spindle servo motor

MY265**

Operating environment: 0 ℃ -55 ℃

Polar logarithm: 4

Incremental encoder cable: 2500/1024PPR

Humidity less than: 90%

Absolute level: F

Protection level: IP54

Insulation and withstand voltage: AC1500V, 1 minute

Insulation resistance: DC500V, above 10M Ω

Structure: air-cooled

Working system: continuous

Installation method: flange/horizontal installation

Power：11~30KW

voltage: 380V
