TAIZHOU LINGCHUAN ELECTROMECHANICAL CO.,LTD

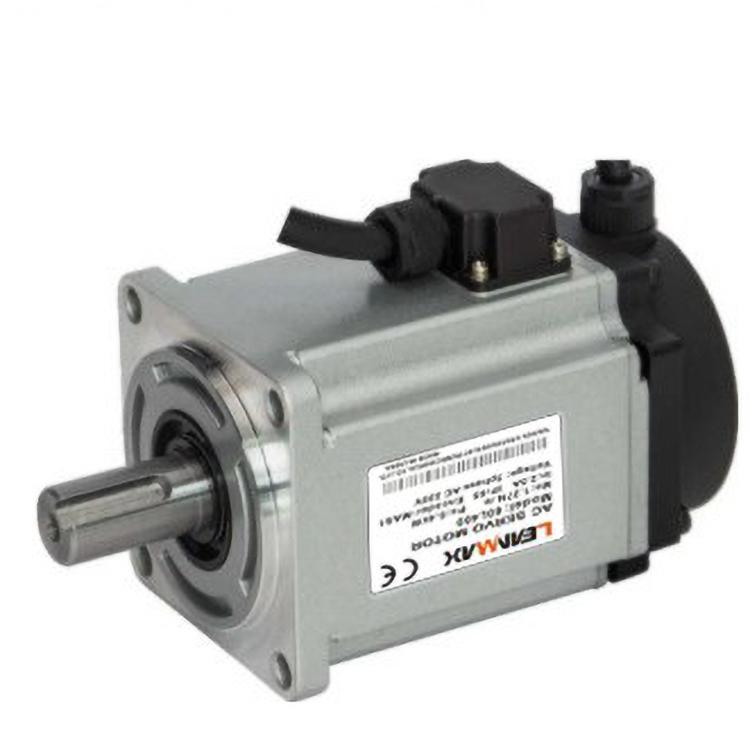

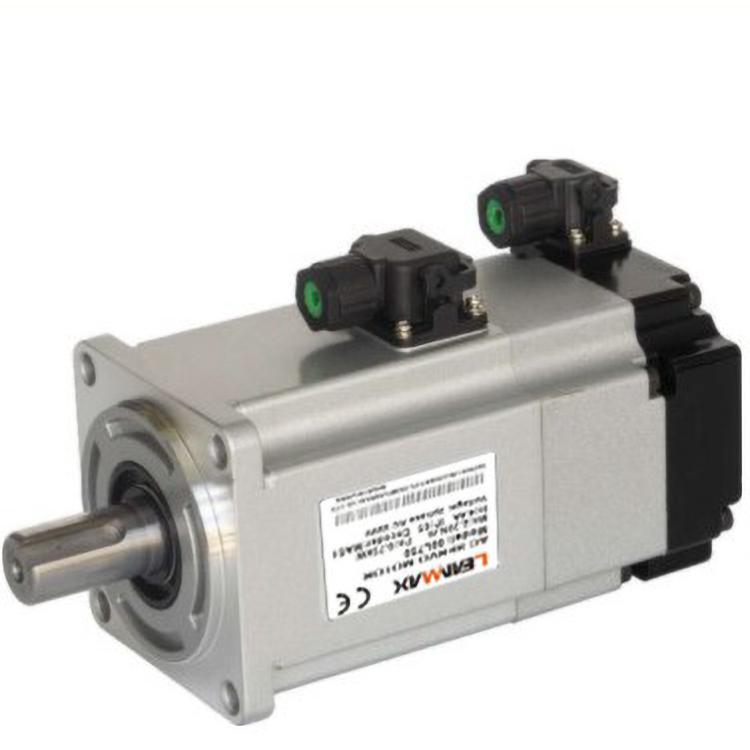

60L&80L Economical servo motor

60 L200 / 60L400 / 80L750 / 8L1000

Pair of Poles: 5

Incremental encoder cable: 2500/5000PPR

Absolute encoder: 17bit

Absolute level: B

Protection level: IP65

Insulation and withstand voltage: AC1500V, 1 minute

Insulation resistance: DC500V, above 10M Ω

Structure: Self cooling

Vibration: below 2.5G

Altitude: below 1000 meters

Pair of Poles：5 | Power：0.2~0.75KW

speed：300rpm | Speed: 3000rpm

Product details
