TAIZHOU LINGCHUAN ELECTROMECHANICAL CO.,LTD

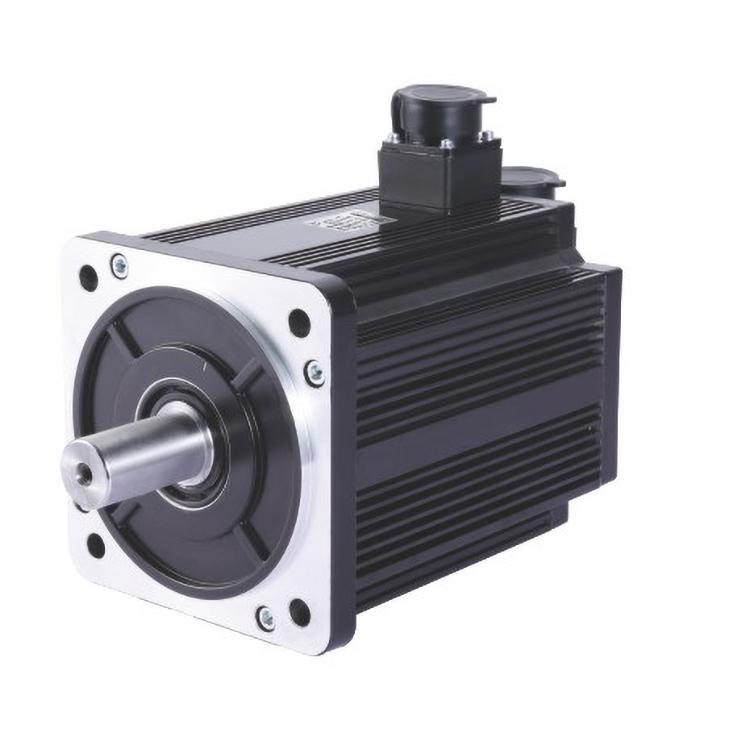

130 H Series Servo motor

130SL-M**HB(□□)

Pair of Poles: 5

Incremental encoder cable: 2500/5000PPR

Absolute encoder: 17bit

Absolute level: B

Protection level: IP65

Insulation and withstand voltage: AC1500V, 1 minute

Insulation resistance: DC500V, above 10M Ω

Structure: Self cooling

Vibration: below 2.5G

Altitude: below 1000 meters

Pair of Poles：4 | Power：1~3.8KW

speed：1500~2500rpm | voltage：380V

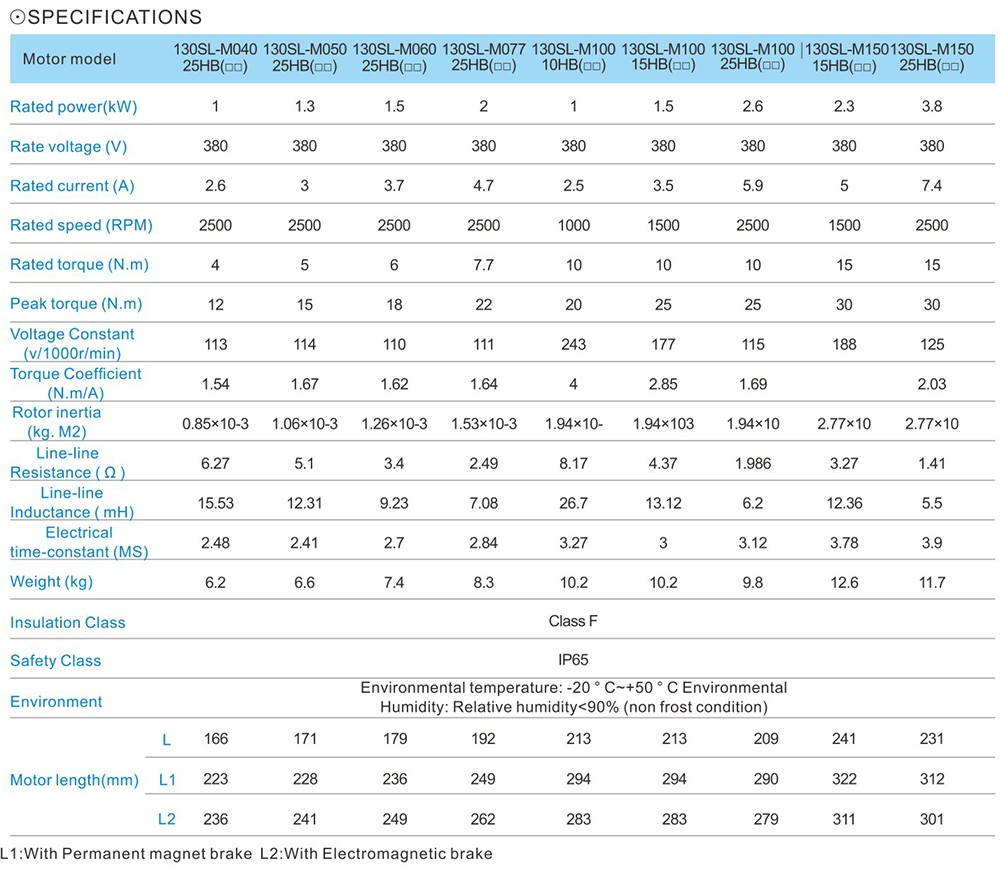

Product details
