TAIZHOU LINGCHUAN ELECTROMECHANICAL CO.,LTD

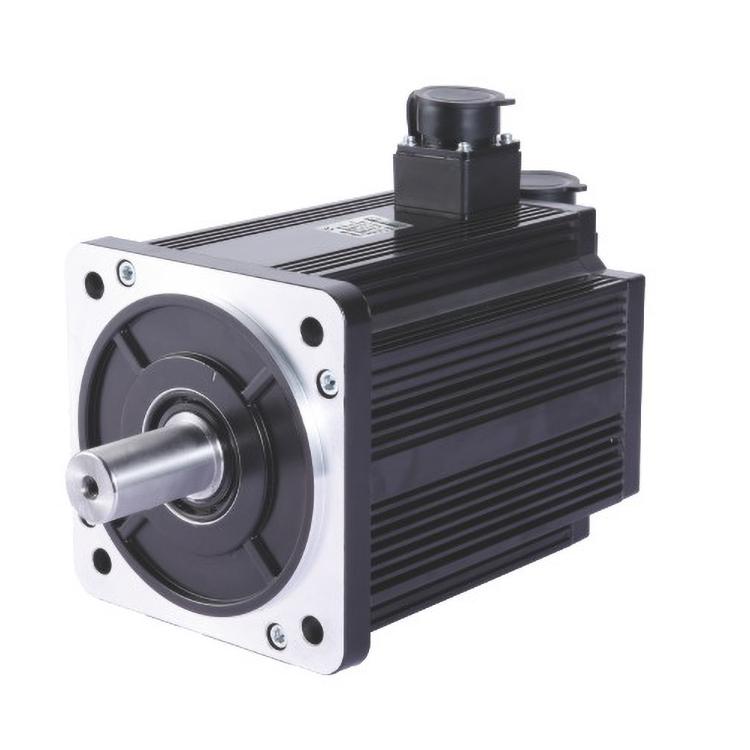

150 Series Servo motor

150SL-M**LBX(□□)

Pair of Poles: 5

Incremental encoder cable: 2500/5000PPR

Absolute encoder: 17bit

Absolute level: B

Protection level: IP65

Insulation and withstand voltage: AC1500V, 1 minute

Insulation resistance: DC500V, above 10M Ω

Structure: Self cooling

Vibration: below 2.5G

Altitude: below 1000 meters

Pair of Poles：5 | Power：3.8~5.5KW

speed：2000~2500rpm

Product details
